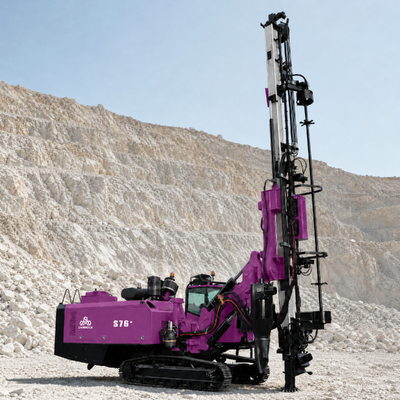

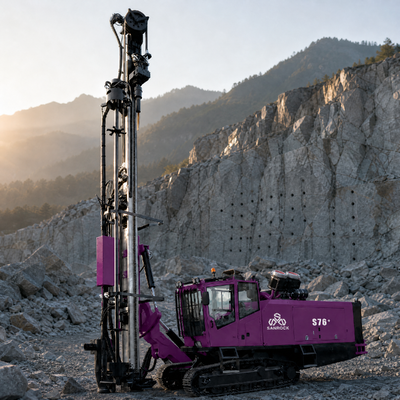

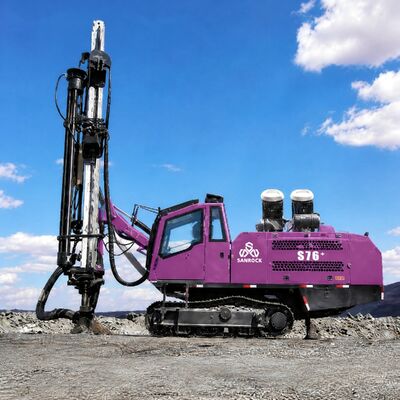

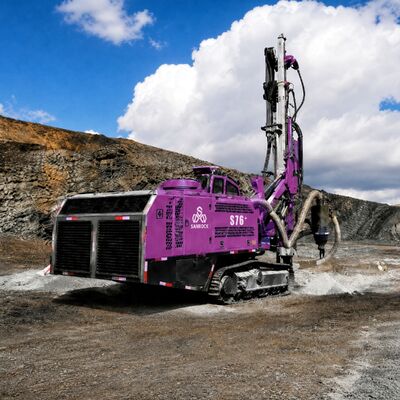

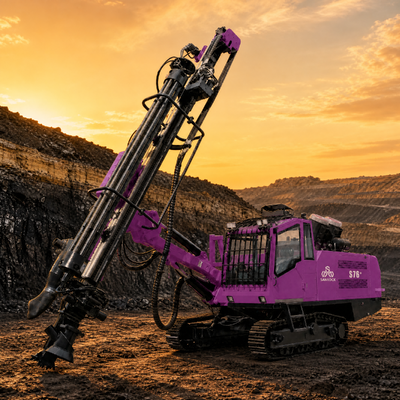

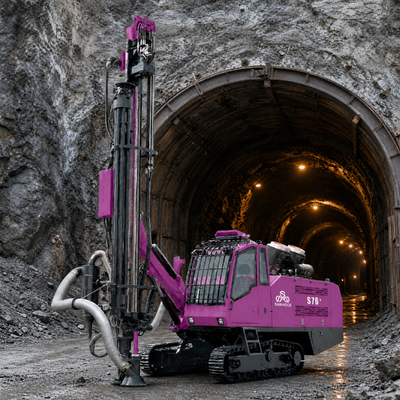

Name: High Efficiency Drilling Machine Automatic Mining Drilling Equipment Integrated Surface DTH Drilling Rig Manufacturer
Brand: Quzhou Sanrock Heavy Industry Machinery Co., Ltd.
SKU: S76+
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Drilling Diameter: Φ140-Φ190 Mm

Lifting Force: 25kN

Name: Borehole Drilling Rig

Drilling Depth: 35 / 30m

Weight: 21500kg

Engine: Yuchai

Rotary Speed: 0-130rpm

Air Displacement: 10-24m³/min

Feed Force: 15kN

Power Type: Diesel

Walking Speed: 2.5km/h, 3km/h

Max. Output Torque: 3500N.m

Climbing Capacity: 30degree

Dimension(l*w*h): 5800×2180×2340mm

Product Name: Drilling Rig

Application: Ore Mining Project,Drilling Rock Mining Quarry,Drilling Blast Hole

Min. Ground Clearance: 460mm

Discharge Pressure: 0.8-2.0MPa

Feature: High Drilling Efficiency,Competitive Price,High Performance

Method Of Feed: Cylinder+Chain

Feed Stroke:: 3200mm

Rated Power: 316 / 1900 KW/rpm

Working Pressure: 24bar

Max. FAD: 24m³/min

Fuel Tank Capacity: 800L

Pipe Diameter: Φ89/Φ102 / Φ114mm

Pipe Length: 5m

Pipe Capacity: 6+1 / 5+1Piece

Rotation Rate: 130rpm

Max. Rotation Torque: 3600Nm

Feeding Force: 30kN

Lifting Force: 30kN

Feed Extension: 1400mm

Feeding Stroke: 5895mm

Feed Swing Angle: 36/95°

Product Size: Length 12000mm *Width 2708mm*Height 3500mm

Feeding Method: Hydraulic Motor + Chain

Highlight:

automatic mining drilling machine

integrated surface DTH drilling rig

high efficiency DTH drilling equipment

Basic Infomation

Place of Origin: Zhejiang, China

Brand Name: SANROCK

Certification: IOS9001 CCC

Model Number: S76+

Document: Mining Drilling Rig .pdf

Payment & Shipping Terms

Packaging Details: Nude package for drilling rig; Wooden package for spare parts; Or customer demand;

Delivery Time: 15-25days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 5000Set/Sets per Month

Gallery

High Efficiency Drilling Machine Automatic Mining Drilling Equipment Integrated Surface DTH Drilling Rig Manufacturer

Product Description

Built exclusively for mining applications, this fully automatic mining drill rig redefines intelligent rock drilling with its core strengths: automated operation, sealed operator cabin and precision smart drilling.
The machine’s automated working workflow removes heavy manual labor from pipe handling and drilling cycles. Its fully enclosed air-conditioned FOPS-certified cabin shields operators from mine dust, flying debris and extreme weather conditions. Panoramic windows paired with an intuitive smart control interface deliver real-time drilling data monitoring, letting operators execute intelligent, precise hole positioning and drilling.
Crafted to endure harsh open-pit mining environments, the rig adapts to uneven terrain and diverse rock strata. It merges automated functionality, operator safety and smart drilling technology to boost productivity while cutting operational risks for mining and quarry projects.

Products Description

Collecting method :Hydraulic dust collection
Engine
Model :QSZ13-C425-30
Type:Water-cooled six-cylinder EFI diesel engine
Rated power:316 / 1900 kW/rpm
Fuel tank capacity :800L
Air compressor
Working pressure:24bar
Max. FAD :24m³/min
Drill pipe changer
Drilling diameter Φ140-Φ190 mm
Drilling depth :35 / 30m
Pipe diameter :Φ89/Φ102 / Φ114mm
Pipe length :5m
Pipe capacity :6+1 / 5+1Piece
Hammer specs :5 - 6 - 7”
Rotary motor
Rotation rate: 130rpm
Max. rotation torque:3600Nm
Feeding method :Hydraulic motor + Chain
Feeding force :30kN
Lifting force :30kN
Feed
Feed extension :1400mm
Feeding stroke:5895mm
Feed swing angle :36/95°
Undercarriage
Track width :350mm
Ground clearance:≥400 mm
Track oscillation:±10°
Walking speed :2.3 / 3.5km/h
Grade ability :20°
Weight:21500kg
Product size:Length 12000mm *Width 2708mm*Height 3500mm

High Efficiency Drilling Machine Automatic Mining Drilling Equipment Integrated Surface DTH Drilling Rig Manufacturer

Company Profile

High Efficiency Drilling Machine Automatic Mining Drilling Equipment Integrated Surface DTH Drilling Rig Manufacturer

Certifications

Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

Competitive Pricing, Premium Value
At SANROCK , we believe great products should come with a price that makes sense for your business. Transparent quotes with no hidden fees, flexible payment terms, and volume discounts. Send us your specs and get a free quotation within 24 hours — quality you can trust at a price that works for you.

2.How can I make payment?
A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
