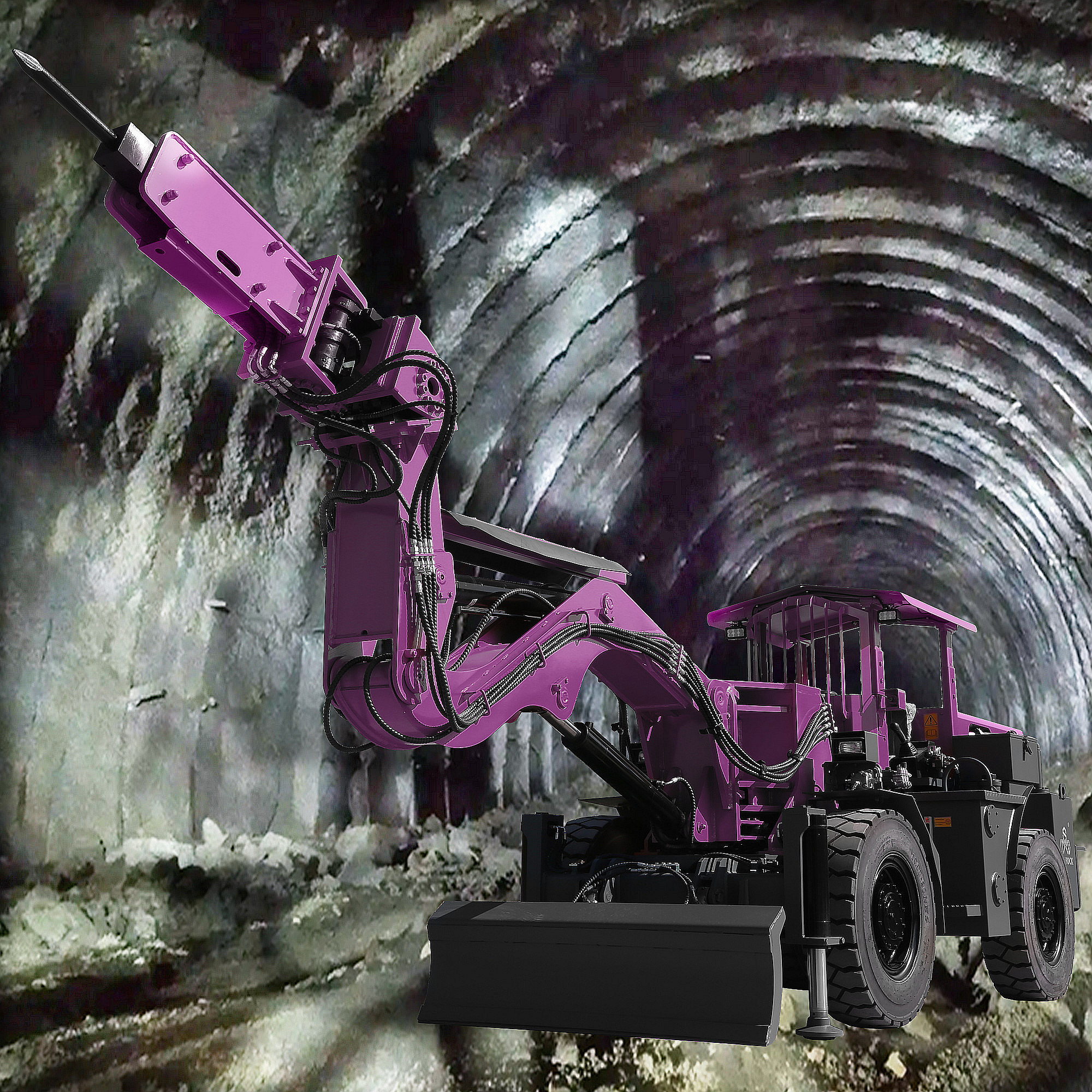

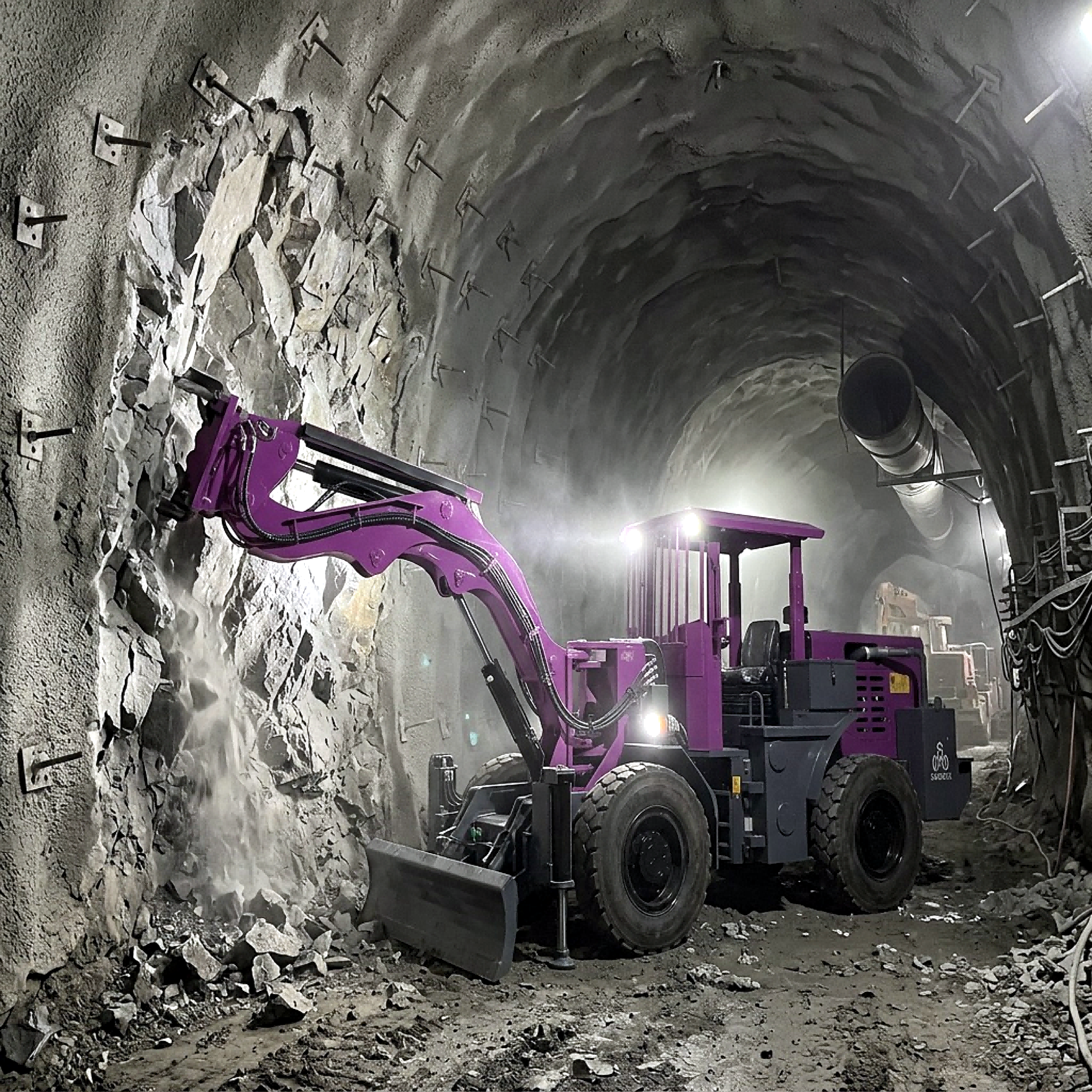

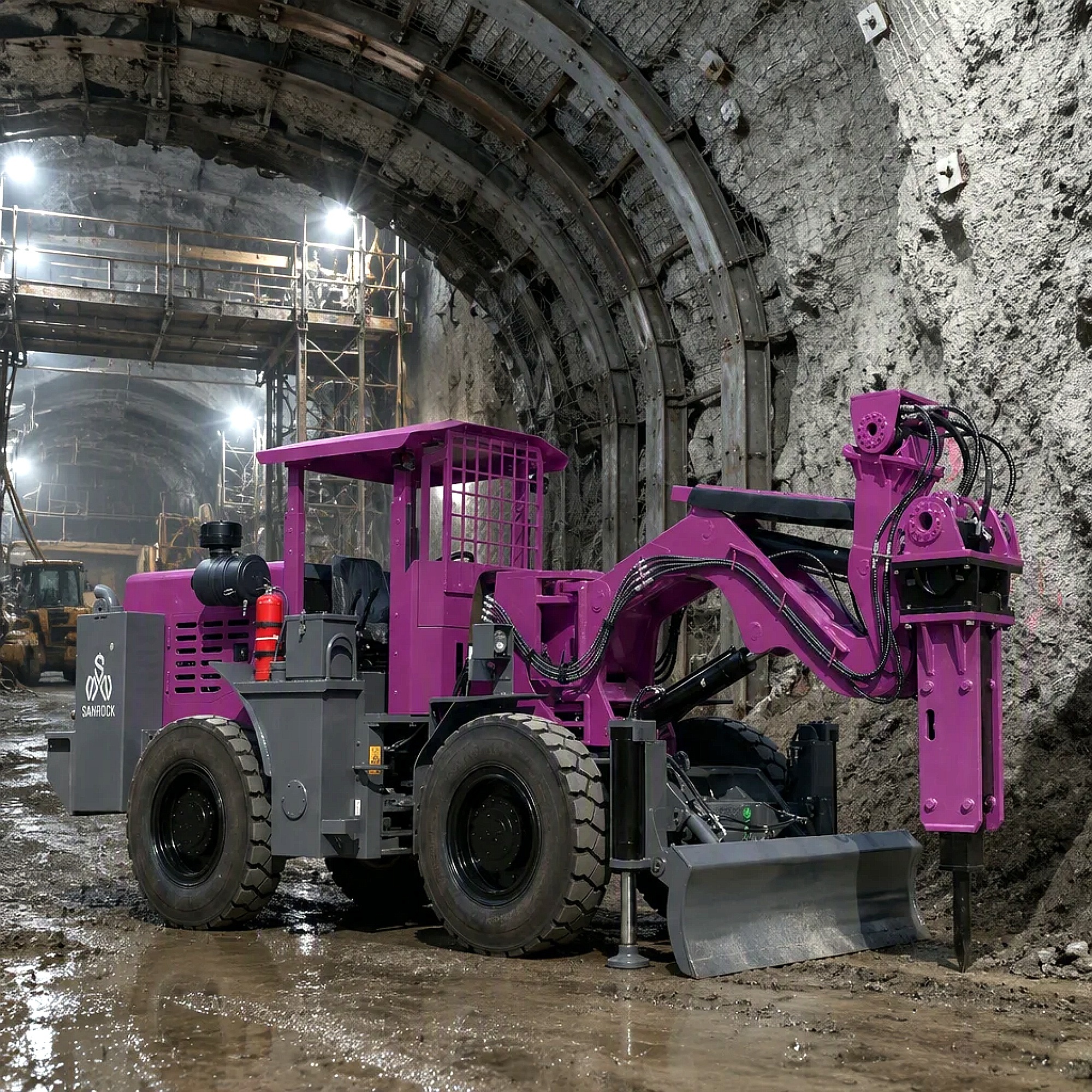

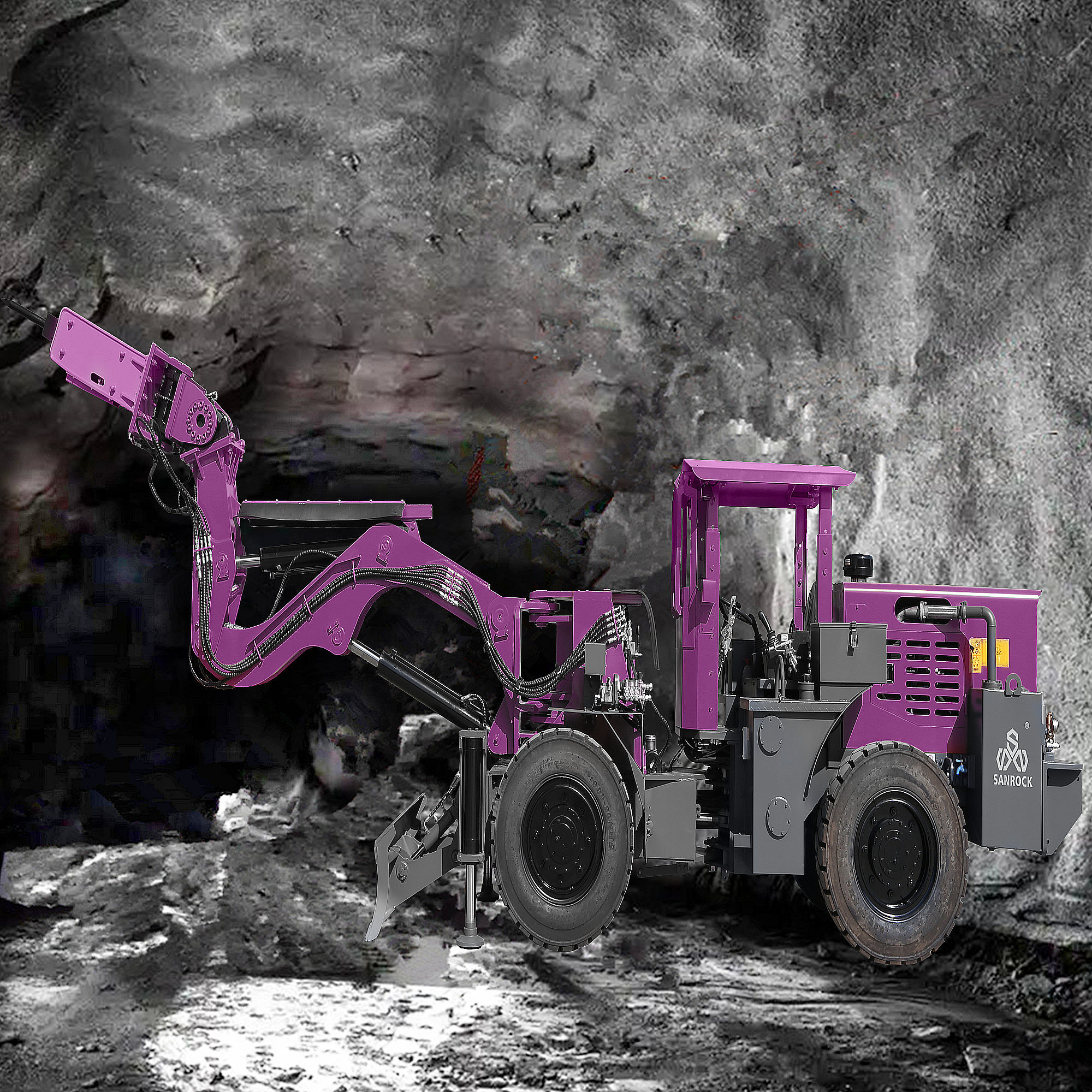

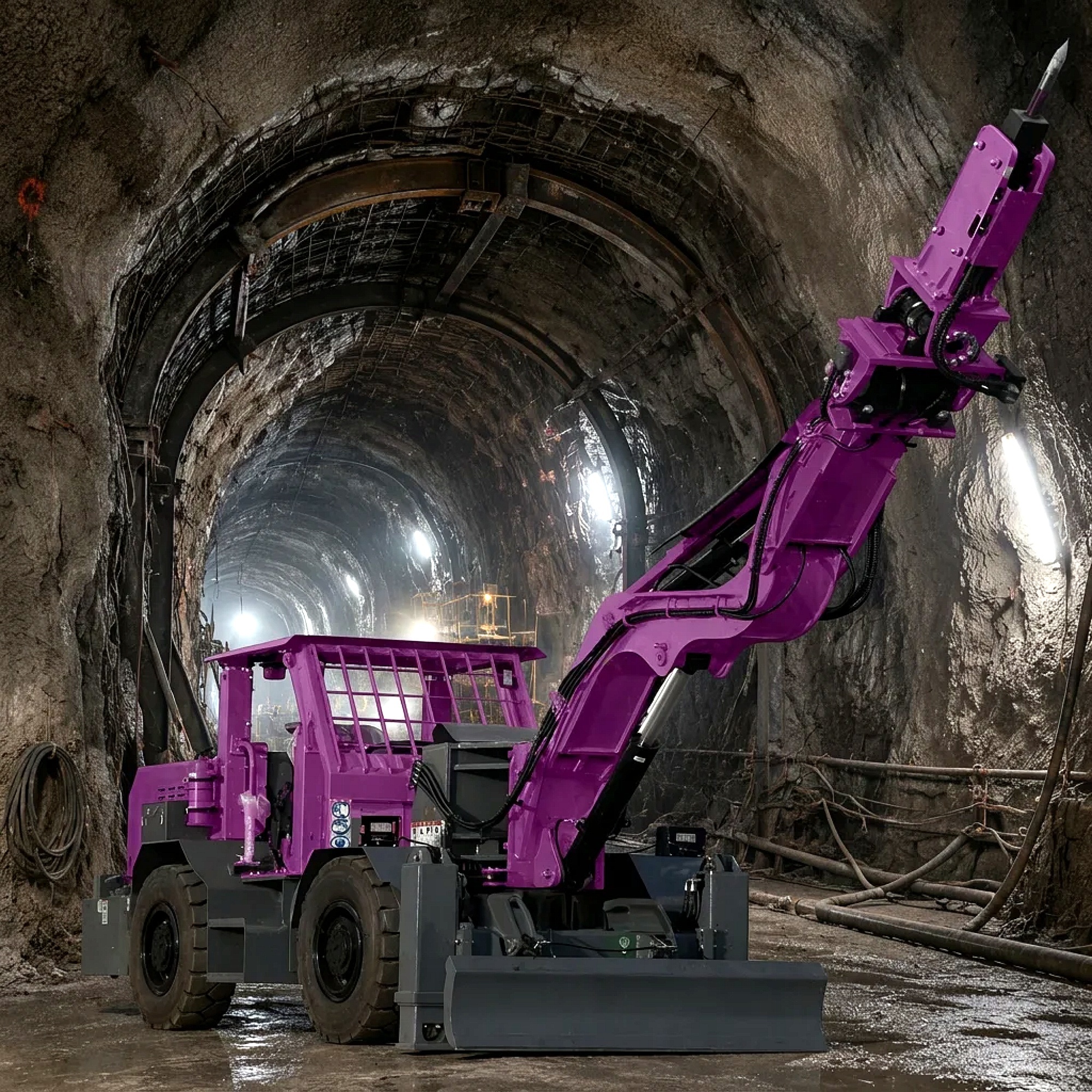

This tunnel scaling drilling rig is a high-performance rock complete breaking construction machine specially designed for tunnel, underground mine and rock slope projects. It integrates drilling, rock breaking and scaling functions in one unit, efficiently removes loose rock, eliminates potential falling rock hazards and completes rock fragmentation work in confined underground spaces. Featuring stable power output, flexible maneuverability and easy operation, it greatly improves construction safety and working efficiency while lowering labor costs. Widely used in railway tunnels, highway tunnels, underground mining and other rock engineering projects.
Equipped with powerful drilling and rock breaking system, the machine can quickly break loose and dangerous rock masses on tunnel walls. Its flexible chassis adapts to narrow tunnel working conditions, with excellent stability and strong environmental adaptability. Compared with manual scaling, it significantly enhances operation safety and construction speed.

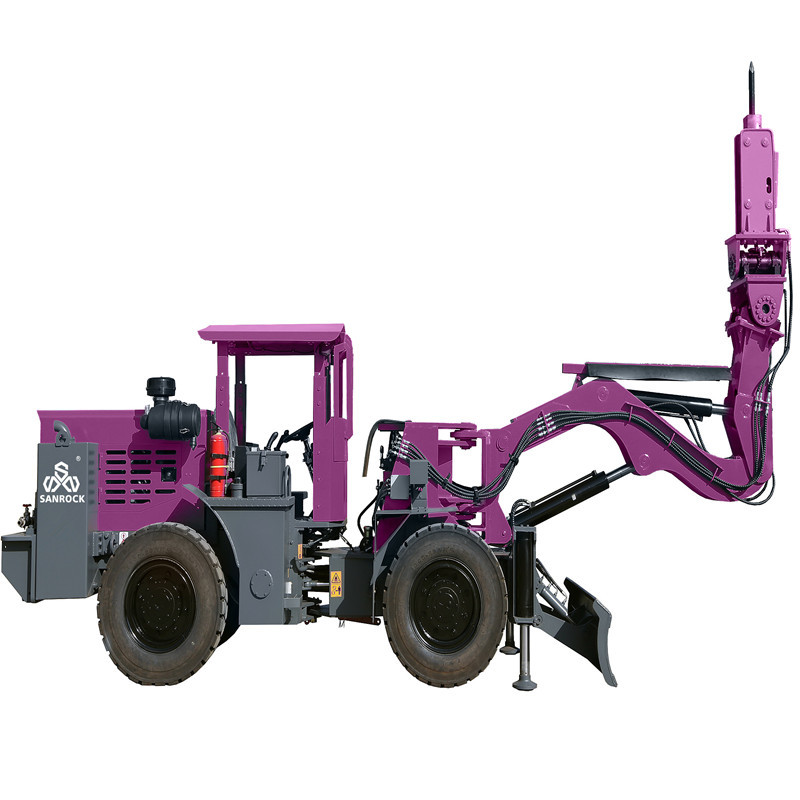

Boom: The boom of SRUS1 has a compact structure with more concentrated force and more stability. Near the breaking hammer there are two helical swing cylinders, which can deliver 360° pitching and swinging without dead angle. Dust off: Exhaust gas purification uses water filtration to improve the working environment. Also, there is a water pump to remove the dust when scaling. If you have other custom requirements, you can contact us at any time.
Products Description
|
Item
|
Unit
|
SRUS1S
|
SRUS1LS
|
|
Working device
|
Impact Energy
|
J
|
362
|
362
|
|
Impact Frequency
|
bpm
|
600-1100
|
600-1100
|
|
Drill Rod Diameter
|
mm
|
Ф53
|
Ф53
|
|
Max.stretching length F
|
mm
|
5200
|
5200
|
|
Max.scaling height
|
mm
|
6000
|
8000
|
|
Chassis
|
Steering system
|
/
|
Articulated
|
Articulated
|
|
Inner Turning Radius
|
mm
|
≤2800
|
≤3250
|
|
Outer Turning Radius
|
mm
|
≤5000
|
≤5250
|
|
Climbing Ability
|
°
|
≤14
|
≤14
|
|
Min.ground Clearance
|
mm
|
≥280
|
≥280
|
|
Frame Swing Angle
|
°
|
8
|
8
|
|
Body Steering Angle
|
°
|
±35
|
±35
|
|
Fuel Tank Capacity
|
L
|
110
|
110
|
|
Traveling speed/Forward
|
km/h
|
4-15
|
4-15
|
|
Traveling speed/Backward
|
km/h
|
4-15
|
4-15
|
|
Disel Engine
|
KW
|
Yanmar 54.3
|
|
Whole machine
|
Dimension
|
mm
|
7260*1720*2390
|
7760*1720*2390
|
|
Weight
|
kg
|
9500
|
10500
|
|
Control method
|
/
|
Electro-hydraulic proportional control
|
|
|
Company Profile
Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
