Our tunnel scaling drilling rig is a professional rock complete breaking construction machine for tunnel scaling and rock fragmentation. Compact and agile for underground narrow spaces, it delivers reliable rock breaking performance, reduces rock fall risks and boosts tunnel construction efficiency. Ideal for tunnel, mining and rock slope engineering.

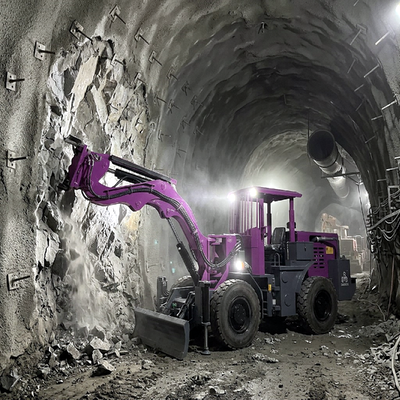

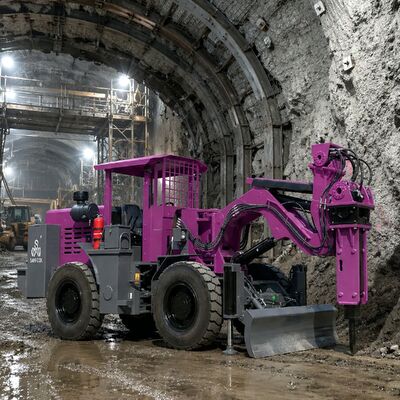

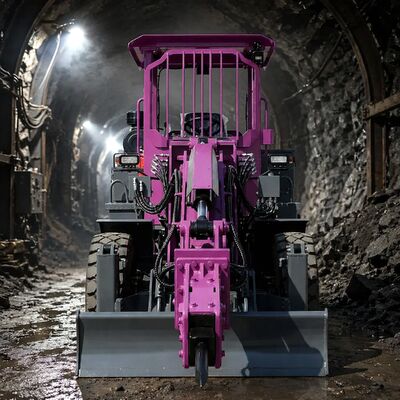

SRUS1S scaling rig is professional special equipment built for mechanized scaling work in small and medium-sized drifts and tunnels. It rapidly and efficiently clears unstable rocks from tunnel roofs and side walls, safeguarding the safety of both operators and construction machinery.
Equipped with a purpose-built breaking hammer for scaling operations, it delivers an impact frequency ranging from 600 to 1100 bpm with an impact energy of 362J. Its maximum impact frequency reaches 1100 bpm, enabling efficient removal of loose unstable rock while minimizing damage to the original tunnel roof structure.

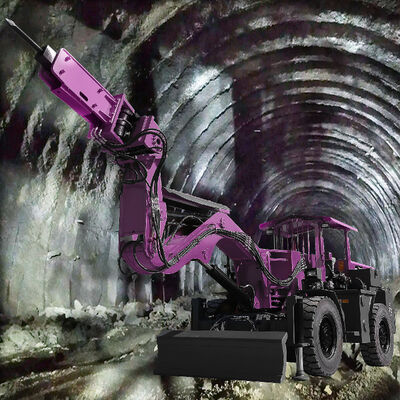

The SRUS1 boom adopts a compact structure featuring concentrated force and outstanding stability. Two helical swing cylinders mounted near the breaking hammer support 360° pitching and swinging movement with no blind working angles.

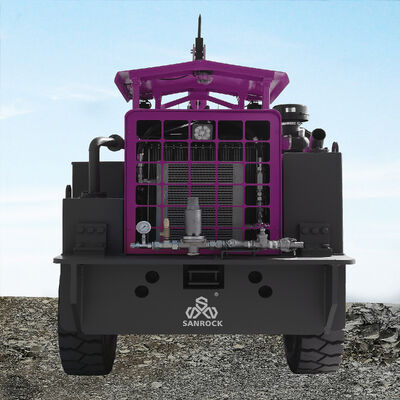

For dust control, the machine applies water filtration for exhaust gas purification to optimize underground working conditions. A matched water pump is included to suppress dust generated during scaling.
Customization is available. Please feel free to contact us for any personalized requirements.
Products Description
|
Item
|
Unit
|
SRUS1S
|
SRUS1LS
|
|
Working device
|
Impact Energy
|
J
|
362
|
362
|
|
Impact Frequency
|
bpm
|
600-1100
|
600-1100
|
|
Drill Rod Diameter
|
mm
|
Ф53
|
Ф53
|
|
Max.stretching length F
|
mm
|
5200
|
5200
|
|
Max.scaling height
|
mm
|
6000
|
8000
|
|
Chassis
|
Steering system
|
/
|
Articulated
|
Articulated
|
|
Inner Turning Radius
|
mm
|
≤2800
|
≤3250
|
|
Outer Turning Radius
|
mm
|
≤5000
|
≤5250
|
|
Climbing Ability
|
°
|
≤14
|
≤14
|
|
Min.ground Clearance
|
mm
|
≥280
|
≥280
|
|
Frame Swing Angle
|
°
|
8
|
8
|
|
Body Steering Angle
|
°
|
±35
|
±35
|
|
Fuel Tank Capacity
|
L
|
110
|
110
|
|
Traveling speed/Forward
|
km/h
|
4-15
|
4-15
|
|
Traveling speed/Backward
|
km/h
|
4-15
|
4-15
|
|
Disel Engine
|
KW
|
Yanmar 54.3
|
|
Whole machine
|
Dimension
|
mm
|
7260*1720*2390
|
7760*1720*2390
|
|
Weight
|
kg
|
9500
|
10500
|
|
Control method
|
/
|
Electro-hydraulic proportional control
|
|
|
